Granite Vision: Convert Chart Images to CSV with Transformers

Problem

Chart data often contains valuable insights, but extracting numbers from these charts manually is time-consuming and tedious.

Solution

IBM’s Granite Vision 3.3 2B converts chart images directly into structured CSV data using Hugging Face Transformers.

Here’s how to extract structured data from any chart image in three steps.

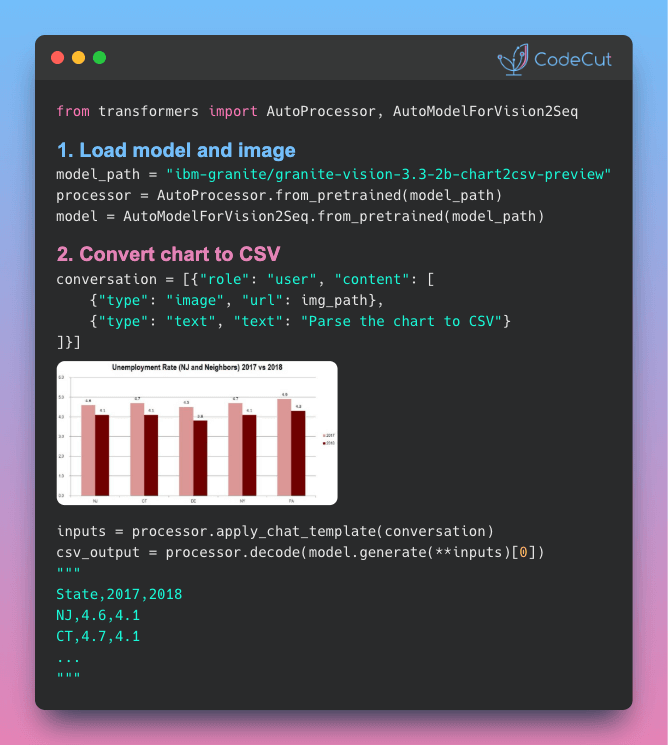

1. Load the Model

Load the chart-to-CSV model from HuggingFace using the transformers library.

from transformers import AutoProcessor, AutoModelForVision2Seq
from huggingface_hub import hf_hub_download
from PIL import Image
import torch

model_path = "ibm-granite/granite-vision-3.3-2b-chart2csv-preview"
device = "cuda" if torch.cuda.is_available() else "cpu"

processor = AutoProcessor.from_pretrained(model_path)
model = AutoModelForVision2Seq.from_pretrained(model_path).to(device)

2. Prepare Your Chart

Define the chart image and task instruction in a conversation format.

# Load a chart image
img_path = hf_hub_download(
    repo_id=model_path, filename="example.jpg"
)
img = Image.open(img_path)

# Use the chart-to-CSV prompt
conversation = [
    {"role": "user", "content": [
        {"type": "image", "url": img_path},
        {"type": "text", "text": "Parse the chart in the image to CSV format."}
    ]}
]

3. Generate CSV Output

Apply the chat template, generate tokens, and decode back to CSV text.

inputs = processor.apply_chat_template(
    conversation,
    add_generation_prompt=True,
    tokenize=True,
    return_dict=True,
    return_tensors="pt"
).to(device)

output = model.generate(**inputs, max_new_tokens=500)
csv_output = processor.decode(output[0], skip_special_tokens=True)
print(csv_output)

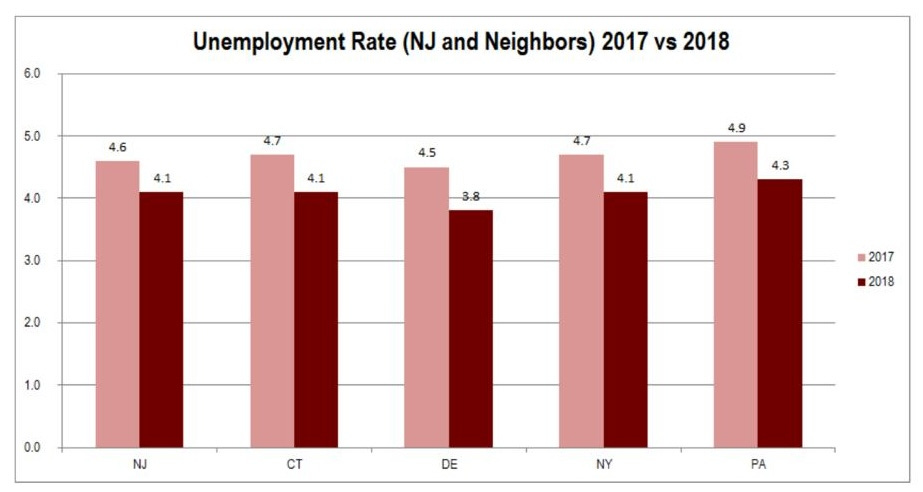

Output:

State,2017,2018
NJ,4.6,4.1
CT,4.7,4.1
DE,4.5,3.8
NY,4.7,4.1
PA,4.9,4.3

---

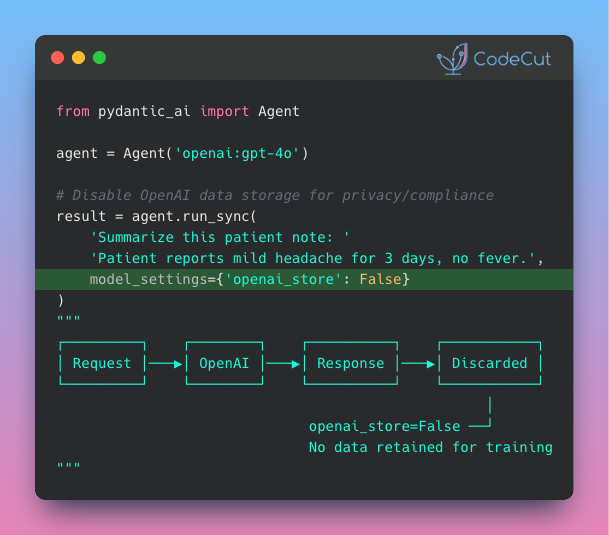

PydanticAI: Control OpenAI Data Retention with openai_store

Problem

By default, OpenAI may retain your API request data for internal review and model improvement. For healthcare, finance, and legal applications, this default creates compliance risks you can’t afford.

Solution

PydanticAI v1.52.0 introduces the openai_store setting to explicitly disable data retention in one line.

📖 View Full Article

---
